BLACK MAGIC TOUGH LED 52″ DOUBLE ROW CURVED LIGHTBAR

$1,159.00
Tax included.
1GJ358197641
ENQUIRE NOW
Colour: Black

Pickup available at GCM Lighting & Electrical

Usually ready in 24 hours

PRODUCT INFO

PERFECT CURVES. RADIANT APPEARANCE.

Every vehicle starts to glisten. Brand new in the HELLA range: our “curved” variants. They enable an even wider light diffusion without any stability being lost. And they look pretty cool, too. With their unique appearance, they give every vehicle the ultimate look- of extravagance and class at the same time.

With 100 LEDs, an effective double row LED light output of up to 20,000 lumens is easily achieved. This leaves absolutely nothing in the dark- and the adventure can begin.

All models are equipped with a temperature control system: it adjusts the light bars to the ambient temperature, protecting against overheating and also regulating the light output in cold ambient temperatures-ideal for off-road vehicles, such as all-terrain vehicles, pick-ups, trucks, buggies, quads.

SPECIFICATIONS

Ideal for:

Off-Road Driving Only
Features:

Double Row LED high-beam lightbar
Full blackout appearance including black brackets
Sleek design eliminates dust and dirt from being lodged in edges
Temperature Control System
Intense light output
Specifications:

100 High intensity LEDs
Light function: Combo light: Spot and Flood light (Off-road only)
Die-cast aluminum housing
Aluminum, black stainless steel mounting bracket
Measured lumen: 20,000 lm
Multivolt 10-30V DC
Current consumption: 18.83-26.67 A (12 V) 9.86-17.07 A (24 V)
Connection: 6.5 ft (2,000 mm) cable with open ends
500 W
Protection class: IP 68, IP 69K
EMC protection: ECE-R10
Color temperature: 5700 Kelvin

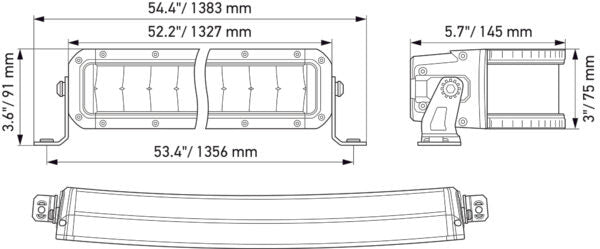

DIMENSIONS

See Diagram in pictures

Installation & Warranty

Install: Must be installed by a qualified auto electrician.

Warranty: Email sales@gcm.com.au for more details

Download Install Specs
Download Install Sheets
