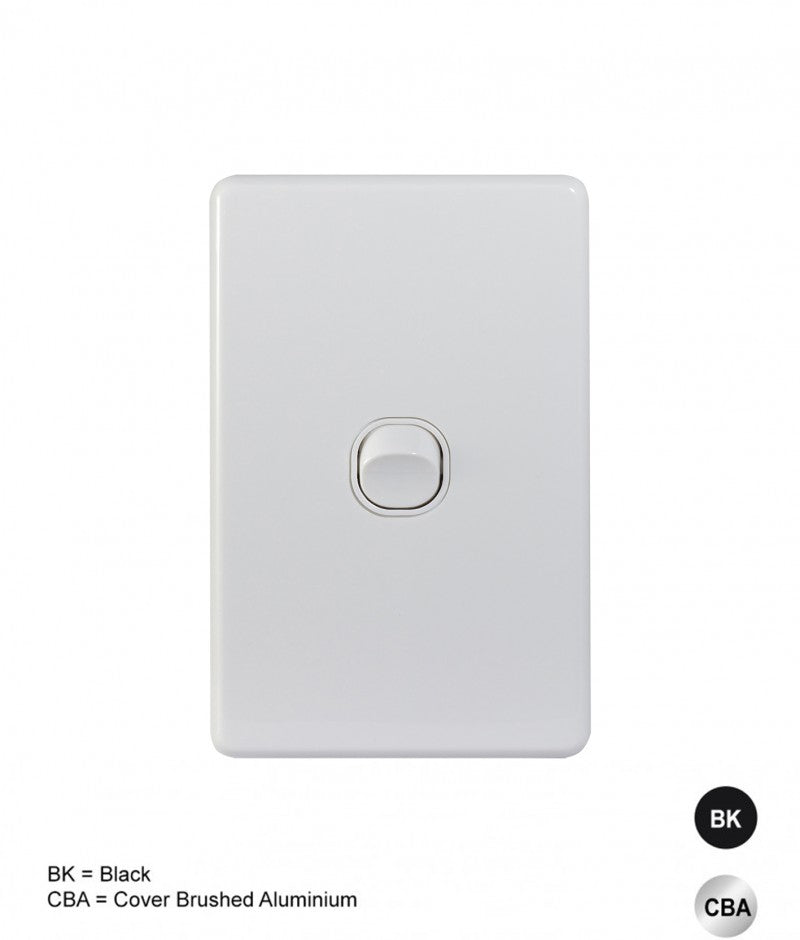

Puma - Switch Vertical 1 Gang, 10AX/16A 250V

$15.18
Tax included.
PUSWV1G
ENQUIRE NOW
Colour: White

Pickup available at GCM Lighting & Electrical

Usually ready in 24 hours

PRODUCT INFO

Details:
-Switches are rated 10AX/16A 250V~ and approved to AS/NZS3133.
-Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.

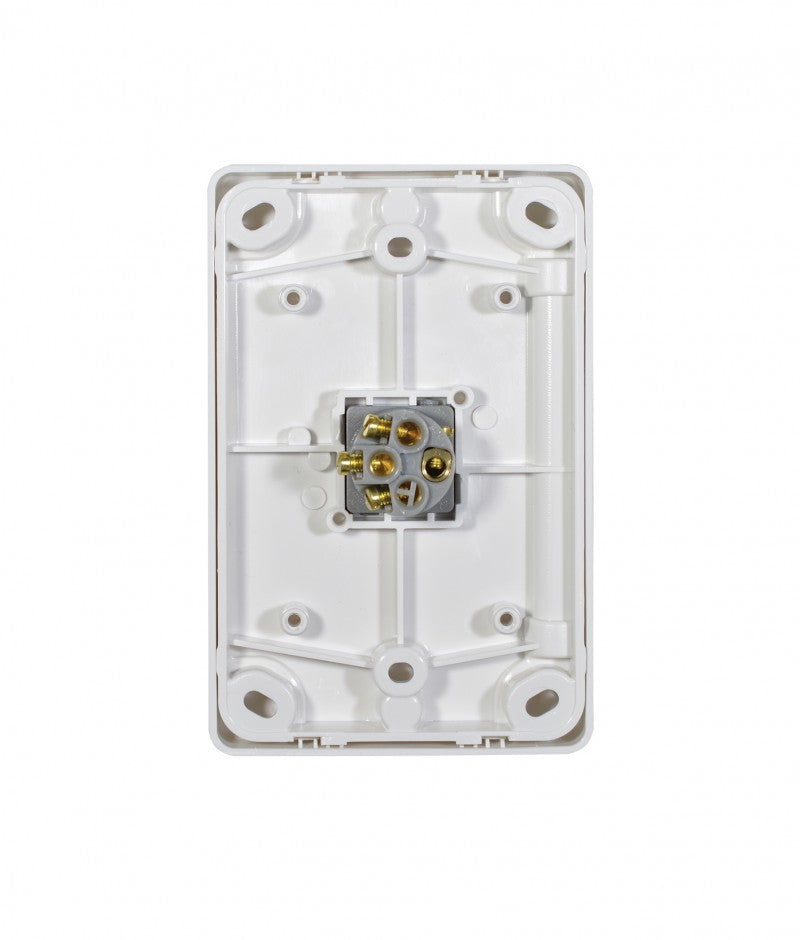

-Uses brass tunnel terminals that have the screws backed out for easier installation of cabling.
-Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1 bore.
-Slotted head screws for the terminals • Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
-Standard colour is white. Black also stocked - please check availability.
-Plates suit Trader Meerkat MESW mechs, including TV and Data; and Clipsal 30 Style* mechs and accessories.

SPECIFICATIONS
DIMENSIONS
Installation & Warranty

Install: Must be installed by a qualified electrical contractor.
Warranty: 3 years*

Download Install Specs
Download Install Sheets
